TouchBolt™
Switch Modules
Electronic Touch-Activated Switches for Detention Environments
Corvinus Electric TouchBolt™ Switch Modules are all-electronic touch-activated switches that provide reliable operation in harsh environments where controls are subjected to severe mechanical abuse. These modules are engineered specifically for correctional facilities, providing dependable control without mechanical failure points.
Available Models
TBM3000 (Momentary)
The TBM3000 provides momentary operation with reliable electronic activation, perfect for applications requiring precise control.
Operation
The main output drive activates on the initial touch and remains active as long as the touch is held. The output then deactivates when the touch is released.
Compatibility
-
- Full line of Corvinus Electric door control cards
- PLC inputs with appropriate interface connections
- Small relay activations for control applications
Downloadable Datasheets are coming soon.
Technical Specifications
-
- Operating Voltage: 24VDC
- Primary Output: Open-collector transistor drive for activating small relays and PLC inputs
- Secondary Output: Brief activation with each touch for connecting to a beeper or buzzer
- Connections: 3/32″ male quick-disconnect tabs
Available Variants:
-
- TBM3000(+): Source-connected main drive (output closes to positive 24V when activated)
- TBM3000(-): Sink-connected main drive (output closes to negative 24V when activated)
TBM4000 (Maintained)
The TBM4000 provides maintained operation, ideal for lighting control and other applications requiring toggle functionality.
Typical Applications
-
- Lighting control in inmate areas
- Equipment activation requiring maintained operation
- Systems requiring toggle functionality
Downloadable Datasheets are coming soon.
Technical Specifications
-
- Operating Voltage: 24VDC
- Primary Output: Open-collector transistor drive for activating small relays and PLC inputs
- Secondary Output: Brief activation with each touch for connecting to a beeper or buzzer
- Connections: 3/32″ male quick-disconnect tabs
Available Variants:
-
- TBM4000(+): Source-connected main drive (output closes to positive 24V when activated)
- TBM4000(-): Sink-connected main drive (output closes to negative 24V when activated)

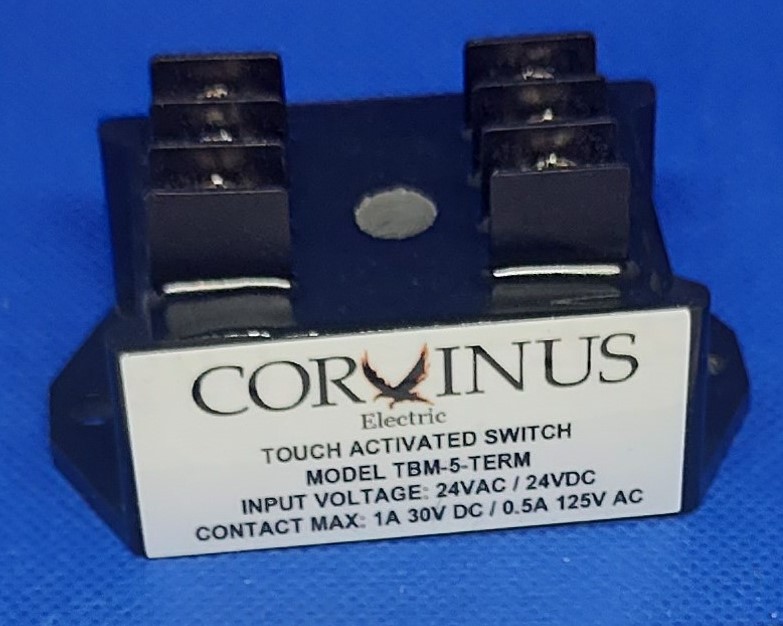

TBM-5-TERM (Dry Contact Control)
The TBM5-TERM dry contact control module provides on-off control of one circuit through a touch-sensitive input with relay isolation for maximum reliability.
Operation States
-
- Default State (power first applied): C-NC contact closed, C-NO contact open
- Activation: Touch-sense control activates the relay
- Release: Touch-sense control release initiates change to subsequent state
- Power Removal: Resets the relay to the default state
Downloadable Datasheets are coming soon.
Technical Specifications
-
- Load Rating: 0.5 amps at 125VAC or 1 amp at 30VAC/30VDC
- Operational Life: 200,000 operations minimum under rated electrical load
- Contact Type: Form-C (SPDT) for maximum connection flexibility
- Recommended Wire: 16 AWG stranded copper wire for active touch sense
- Maximum Distance: 8 feet between the controller and the stainless-steel bolt
- Terminal Compatibility: #16-22 AWG wire sizes
- Power Input: 24VAC or 24VDC
Installation Requirements
-
- Touch-sense must be run in a separate non-metallic conduit
- Through-wall penetrations must be run in PVC (non-metallic) conduit
- Touch lead cannot be run with power leads
- 24VAC or 24VDC power must be applied at all times for proper controller operation
- Connect 24VAC or 24VDC (-) to line neutral and 24VAC or 24VDC (+) to line hot
Advantages of TouchBolt™ Technology
Vandal Resistance
With no moving parts exposed to inmates, TouchBolt™ switches eliminate common points of failure found in mechanical switches.
Environmental Durability
Electronic operation ensures reliable function even in harsh detention environments with temperature fluctuations, moisture, and exposure to cleaning chemicals.
Longevity
Minimum of 200,000 operations under rated load ensures years of dependable service with minimal maintenance.
Simplified Maintenance
Easy field replacement and standardized connections make service straightforward when required.
